Description

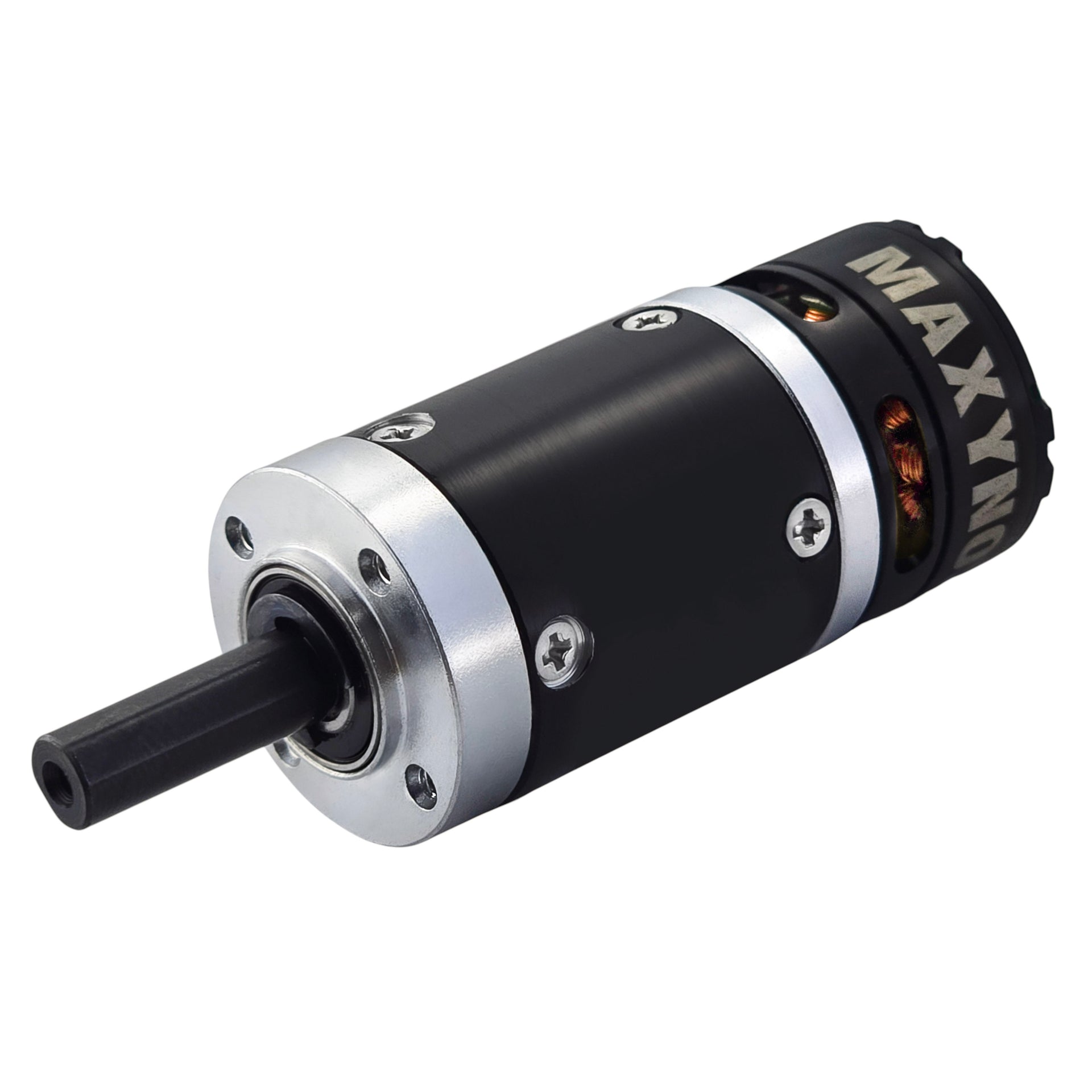

planetary gear motor MAXYNOS THOR 2318 | Planetary Gear Brushless DC MotorThe MAXYNOS THOR 2318 (Titan High Power Outrunner) is a series of planetary gearbox brushless DC motors designed for compact size, maximum torque, high speed, and high energy efficiency in robotics, automation, and motion control applications. THOR motors feature an external rotor design that delivers significantly higher torque while maintaining excellent thermal stability and energy efficiency. The MAXYNOS THOR series offers an exceptional size to
The MAXYNOS THOR 2318 (Titan High-Power Outrunner) is a series of planetary-gearbox brushless DC motors designed for compact size, maximum torque, high speed, and high energy efficiency in robotics, automation, and motion-control applications.
THOR motors feature an external-rotor design that delivers significantly higher torque while maintaining excellent thermal stability and energy efficiency.
The MAXYNOS THOR series offers an exceptional size-to-power ratio and peak torque output, engineered for creators, builders, and professionals who demand nothing but the best.
Key Features:
- 24 mm planetary gearbox available in three gear ratios (19:1, 27:1, and 51:1).
- 6 mm D-shape shaft and 3.5 mm motor wires bullet connectors.
- Motor available in two kV ratings, the 1250 kV variant is optimized for speed and torque, while the 625 kV variant optimized for torque and efficiency.
| Gear Ratio | Test Voltage (V) |
Rated Current (A) |
Rated Power (W) |
Nominal Torque (N.m) |
Nominal Speed (RPM) |
No-Load Speed (RPM) |
|---|---|---|---|---|---|---|
| 19:1 | 15 | 8.0 | 80 | 1 | 505 | 954 |
| 27:1 | 15 | 8.0 | 80 | 1.6 | 385 | 675 |
| 51:1 | 15 | 8.0 | 80 | 2.4 | 193 | 366 |
| Gear Ratio | Test Voltage (V) |
Rated Current (A) |
Rated Power (W) |
Nominal Torque (N.m) |
Nominal Speed (RPM) |
No-Load Speed (RPM) |
|---|---|---|---|---|---|---|
| 19:1 | 15 | 4 | 60 | 0.9 | 175 | 488 |
| 27:1 | 15 | 4 | 60 | 1.4 | 128 | 344 |
| 51:1 | 15 | 4 | 60 | 2.2 | 63 | 184 |
Download MAXYNOS THOR 2318 Datasheet (PDF).
